TECHNICAL SPECIFICATIONS BUTTERFLY FOLDING UNIT
Size min/max cm 8×15 / cm 50×85
Sheet weight 80 to 450 g.s.m.
Programs 200 programs
Production A4 with 1 fold 14,500 sheets per hour
Power supply 230 Volts 50 Hz single phase
Power requirement 2 Kw
Net weight Butterfly 2: 226 Kg; Butterfly 3: 253 Kg
Size 198x91x120 cm
AVAILABLE WITH
QR CODE READER | REMOTE ASSISTANCE

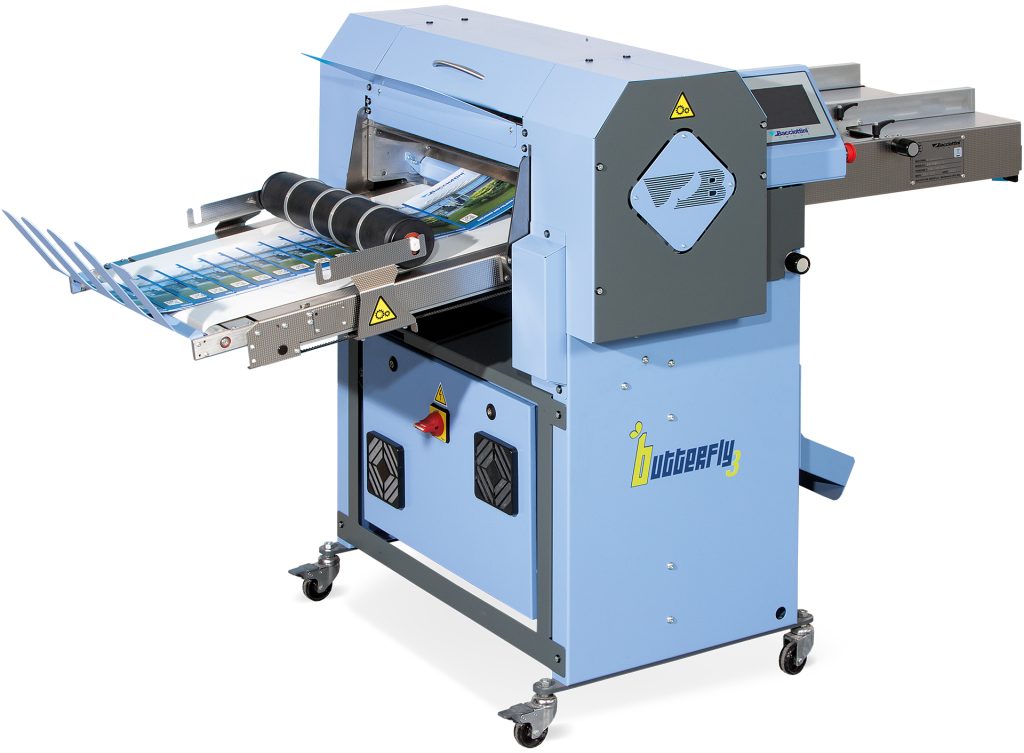

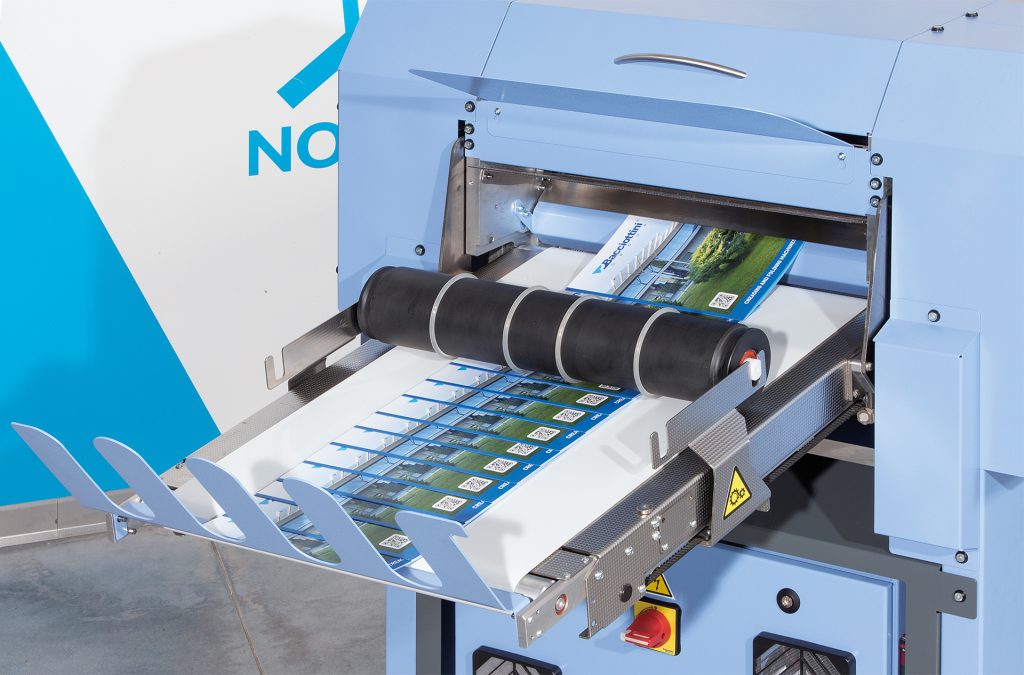

BUTTERFLY is the folding unit positioned behind the creasing and perforating machine. The electronic set up of the two parallel folds is automatically done through a HMI panel; the parallel folds are performed by special knife units that allow sheets up to 0,45 mm of thickness to be folded whithout distortion to the sheet even if folding against the grain.

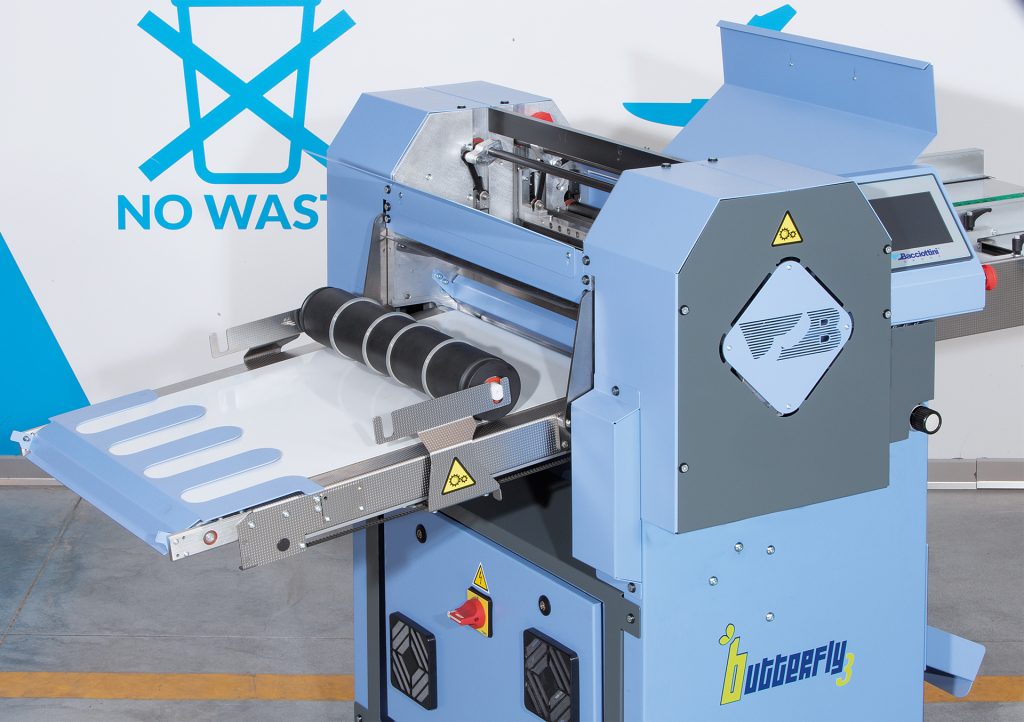

BUTTERFLY 3 model thanks to a third knife unit, in addition to the folds performed by the Butterfly 2, can also do a “closed gate fold” and the “Z” fold 8 pages.
